Okay...the Fuel is back together with it's repaired fan header on Mainboard, new V10 graphics, existing PIMM, full 2GB of RAM, and original 18.2 HDD. She all runs right into Irix, no issues detected
I do still need to fix the fuel door latch that's broken off but that's underway right now, so I may post about that...or use another thread for that info.
Code:
SGI SN1 L1 Controller
Firmware Image B: Rev. 1.48.1, Built 01/22/2007 11:34:20
001a01-L1>env
Environmental monitoring is enabled and running.
Description State Warning Limits Fault Limits Current
-------------- ---------- ----------------- ----------------- -------
12V Wait Pwr 10% 10.80/ 13.20 20% 9.60/ 14.40 0.188
12V IO Wait Pwr 10% 10.80/ 13.20 20% 9.60/ 14.40 0.188
5V Wait Pwr 10% 4.50/ 5.50 20% 4.00/ 6.00 0.104
3.3V Wait Pwr 10% 2.97/ 3.63 20% 2.64/ 3.96 0.688
2.5V Wait Pwr 10% 2.25/ 2.75 20% 2.00/ 3.00 0.000
1.5V Wait Pwr 10% 1.35/ 1.65 20% 1.20/ 1.80 0.000
5V AUX Wait Pwr 10% 4.50/ 5.50 20% 4.00/ 6.00 5.044
3.3V AUX Wait Pwr 10% 2.97/ 3.63 20% 2.64/ 3.96 3.302
PIMM 12V BIAS Wait Pwr 10% 10.80/ 13.20 20% 9.60/ 14.40 0.188
SRAM Wait Pwr 10% 2.25/ 2.75 20% 2.00/ 3.00 0.221
VCPU Wait Pwr 10% 1.13/ 1.38 20% 1.00/ 1.50 0.014
PIMM 1.5V Wait Pwr 10% 1.35/ 1.65 20% 1.20/ 1.80 0.000
PIMM 3.3V AUX Wait Pwr 10% 2.97/ 3.63 20% 2.64/ 3.96 3.285
PIMM 5V AUX Wait Pwr 10% 4.50/ 5.50 20% 4.00/ 6.00 5.018
XIO 12V BIAS Wait Pwr 10% 10.80/ 13.20 20% 9.60/ 14.40 0.188
XIO 5V Wait Pwr 10% 4.50/ 5.50 20% 4.00/ 6.00 0.104
XIO 2.5V Wait Pwr 10% 2.25/ 2.75 20% 2.00/ 3.00 0.000
XIO 3.3V AUX Wait Pwr 10% 2.97/ 3.63 20% 2.64/ 3.96 3.302
Description State Warning RPM Current RPM
--------------- ---------- ----------- -----------
FAN 0 EXHAUST Wait Pwr 920 0
FAN 1 HD Wait Pwr 1560 0
FAN 2 PCI Wait Pwr 1120 0
FAN 3 XIO 1 Wait Pwr 1600 0
FAN 4 XIO 2 Wait Pwr 1600 0
FAN 5 PS Wait Pwr 1349 0
Advisory Critical Fault Current
Description State Temp Temp Temp Temp
----------------- ---------- --------- --------- --------- ---------
0 NODE 0 Wait Pwr [Autofan Control] 80C/176F 12C/ 53F
1 NODE 1 Wait Pwr [Autofan Control] 80C/176F 12C/ 53F
2 NODE 2 Wait Pwr [Autofan Control] 80C/176F 12C/ 53F
3 PIMM Wait Pwr [Autofan Control] 80C/176F 12C/ 53F
4 ODYSSEY Wait Pwr [Autofan Control] 80C/176F 12C/ 53F
5 BEDROCK Wait Pwr Not currently available
001a01-L1>INFO: 001a01 will power up system in 5 seconds...
INFO: 001a01 powering up the system.
entering console mode 001a01 CPU0, <CTRL_T> to escape to L1
Starting PROM Boot process
IP35 PROM SGI Version 6.210 built 02:33:51 PM Aug 26, 2004
Running in DDR mode
Testing/Initializing memory ............... DONE
Copying PROM code to memory ............... DONE
Discovering local IO ...................... DONE
Discovering NUMAlink connectivity .........
Local hub NUMAlink is down.
*** Local network link down
DONE
Found 1 objects (1 hubs, 0 routers) in 5900 usec
Waiting for peers to complete discovery.... DONE
No other nodes present; becoming global master
Global master is /hw/rack/001/bay/01
\\\\Intializing any CPUless nodes.............. \\DONE
\Checking partitioning information ......... DONE
No other nodes present; becoming partition master
\Loading BASEIO prom ....................... DONE
BASEIO PROM Monitor SGI Version 6.210 built 02:30:38 PM Aug 26, 2004 (BE64)
1 CPUs on 1 nodes found.
Automatic update of PROM environment disabled
PS/2 Keyboard & Mouse diagnostics
Found mouse on port 0
Found keyboard on port 1
PS/2 Keyboard & Mouse diagnostics passed
Graphics diagnostics
Odyssey board #0 found on nasid 0
Running Odyssey xtalk sanity diag...
Board version 1 - Buzz revision 2B
On board sdram size: 32 Mb
Cas latency: CAS 3
2 banks by sdram module
Running Odyssey Buzz registers diag...
Device passed diagnostics
Installing PROM Device drivers ............
Base I/O Ethernet set to /dev/ethernet/ef0
Installing Graphics Console...
graphics install: searching for pipe 0
Walking SCSI Adapter 0, (pci id 1)
1+ Device Vendor Product: QUANTUM ATLAS10K2-TY184L
2- 3- 4- 5- 6- 7- 8- 9- 10- 11- 12- 13- 14- 15- = 1 device(s)
Walking SCSI Adapter 1, (pci id 1)
1- 2- 3- 4- 5- 6+ Device Vendor Product: TOSHIBA DVD-ROM SD-M1711
7- 8- 9- 10- 11- 12- 13- 14- 15- = 1 device(s)
Initializing PROM Device drivers .......... DONE
escaping to L1 system controller
001a01-L1>l1
L1 command processor engaged, <CTRL-D> to exit.
001a01-L1>env
Environmental monitoring is enabled and running.
Description State Warning Limits Fault Limits Current
-------------- ---------- ----------------- ----------------- -------
12V Enabled 10% 10.80/ 13.20 20% 9.60/ 14.40 11.938
12V IO Enabled 10% 10.80/ 13.20 20% 9.60/ 14.40 12.063
5V Enabled 10% 4.50/ 5.50 20% 4.00/ 6.00 5.070
3.3V Enabled 10% 2.97/ 3.63 20% 2.64/ 3.96 3.354
2.5V Enabled 10% 2.25/ 2.75 20% 2.00/ 3.00 2.470
1.5V Enabled 10% 1.35/ 1.65 20% 1.20/ 1.80 1.466
5V AUX Enabled 10% 4.50/ 5.50 20% 4.00/ 6.00 5.018
3.3V AUX Enabled 10% 2.97/ 3.63 20% 2.64/ 3.96 3.302
PIMM 12V BIAS Enabled 10% 10.80/ 13.20 20% 9.60/ 14.40 12.000
SRAM Enabled 10% 2.25/ 2.75 20% 2.00/ 3.00 2.509
VCPU Enabled 10% 1.13/ 1.38 20% 1.00/ 1.50 1.255
PIMM 1.5V Enabled 10% 1.35/ 1.65 20% 1.20/ 1.80 1.495
PIMM 3.3V AUX Enabled 10% 2.97/ 3.63 20% 2.64/ 3.96 3.285
PIMM 5V AUX Enabled 10% 4.50/ 5.50 20% 4.00/ 6.00 5.018
XIO 12V BIAS Enabled 10% 10.80/ 13.20 20% 9.60/ 14.40 11.875
XIO 5V Enabled 10% 4.50/ 5.50 20% 4.00/ 6.00 5.070
XIO 2.5V Enabled 10% 2.25/ 2.75 20% 2.00/ 3.00 2.470
XIO 3.3V AUX Enabled 10% 2.97/ 3.63 20% 2.64/ 3.96 3.302
Description State Warning RPM Current RPM
--------------- ---------- ----------- -----------
FAN 0 EXHAUST Enabled 920 1180
FAN 1 HD Enabled 1560 2149
FAN 2 PCI Enabled 1120 1534
FAN 3 XIO 1 Enabled 1600 2163
FAN 4 XIO 2 Enabled 1600 2020
FAN 5 PS Enabled 1349 2122
Advisory Critical Fault Current
Description State Temp Temp Temp Temp
----------------- ---------- --------- --------- --------- ---------
0 NODE 0 Enabled [Autofan Control] 80C/176F 16C/ 60F
1 NODE 1 Enabled [Autofan Control] 80C/176F 14C/ 57F
2 NODE 2 Enabled [Autofan Control] 80C/176F 12C/ 53F
3 PIMM Enabled [Autofan Control] 80C/176F 20C/ 68F
4 ODYSSEY Enabled [Autofan Control] 80C/176F 13C/ 55F
5 BEDROCK Enabled [Autofan Control] 85C/185F 16C/ 60F
001a01-L1>
001a01-L1>pwr
Supply State Voltage Margin Value
-------------- ----- --------- ------- -----
12V on 11.938V N/A
12V IO NC 12.000V N/A
5V NC 5.070V N/A
3.3V NC 3.354V normal 0
2.5V on 2.470V normal 0
1.5V NC 1.466V normal 0
5V AUX NC 5.018V N/A
3.3V AUX NC 3.285V N/A
PIMM 12V BIAS NC 12.000V N/A
SRAM NC 2.509V normal 0
VCPU on 1.255V normal 117
PIMM 1.5V NC 1.495V normal 0
PIMM 3.3V AUX NC 3.285V N/A
PIMM 5V AUX NC 4.992V N/A
XIO 12V BIAS NC 11.875V N/A
XIO 5V NC 5.070V N/A
XIO 2.5V on 2.470V normal 0
XIO 3.3V AUX NC 3.302V N/A
001a01-L1>
001a01 ATTN: Power Down: issue 'pwr d' again to immediately power down.

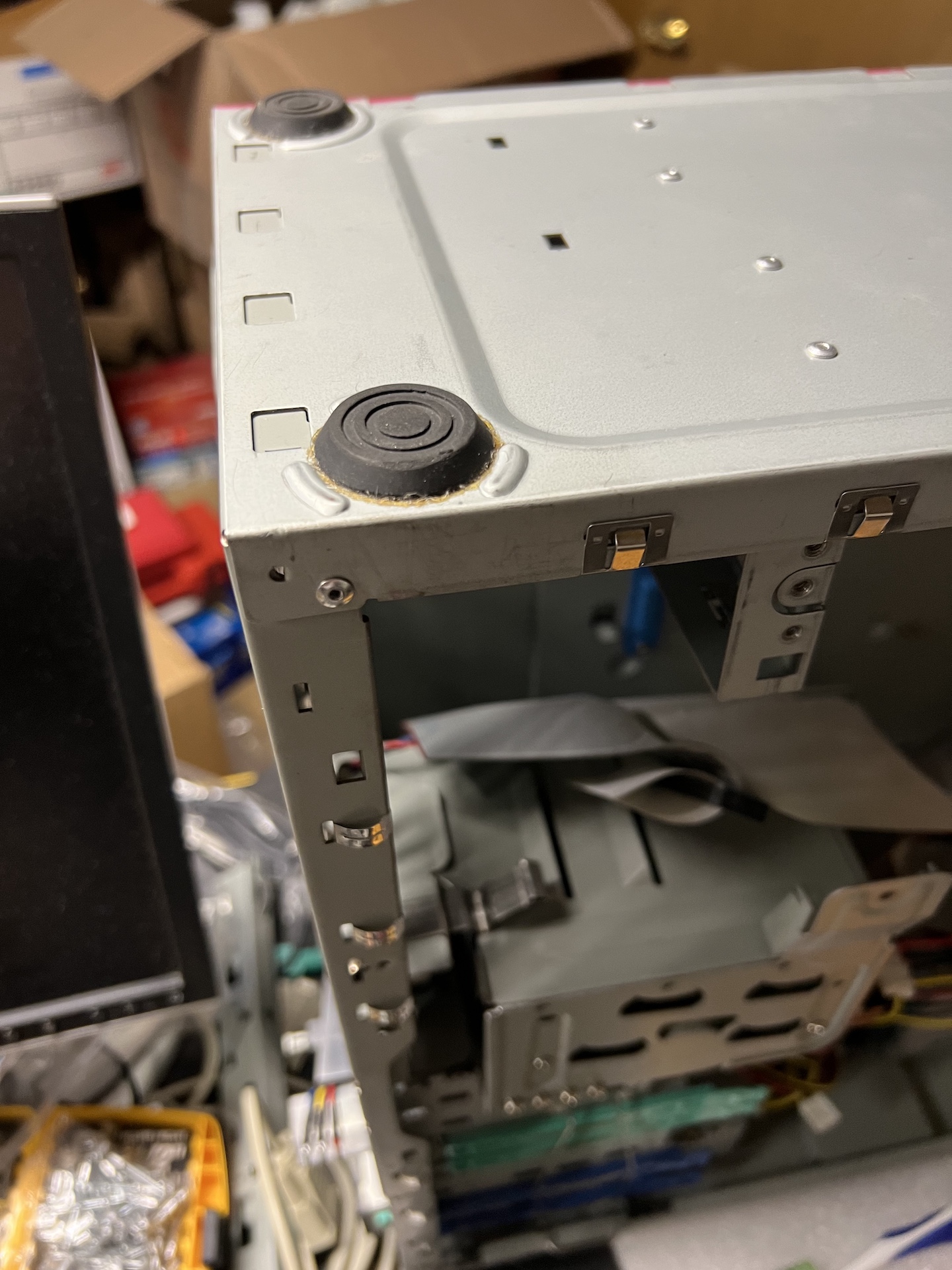

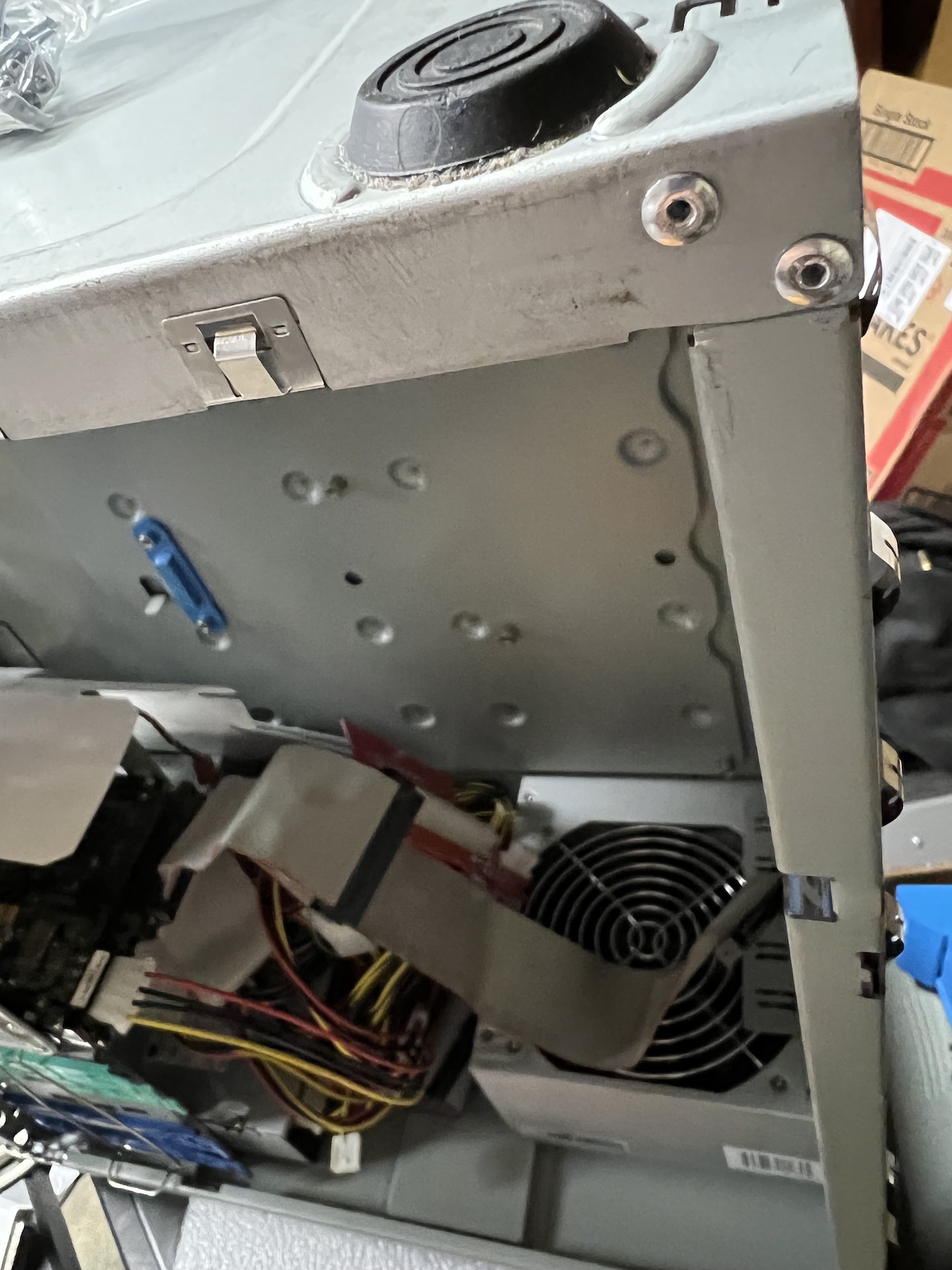

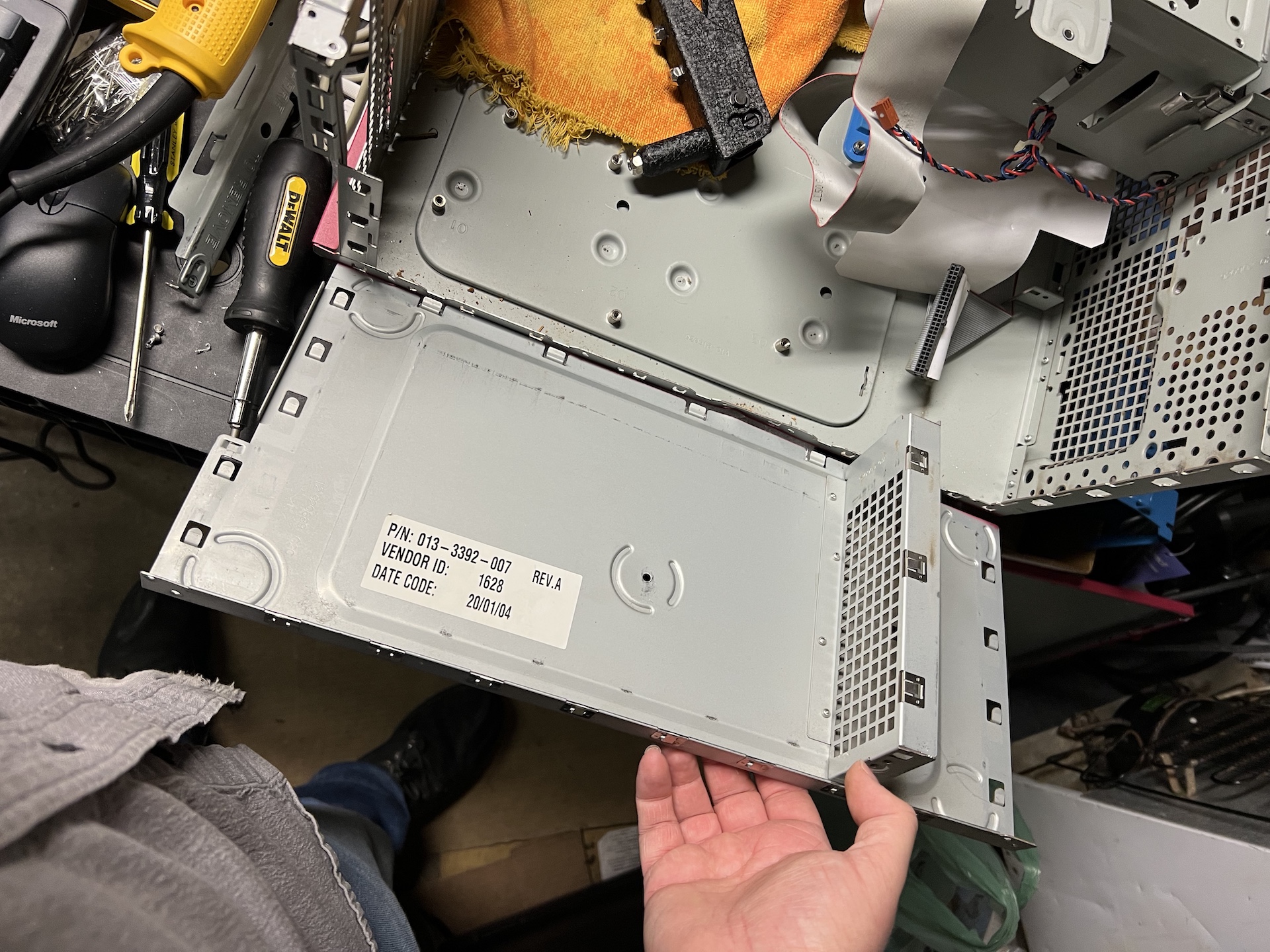

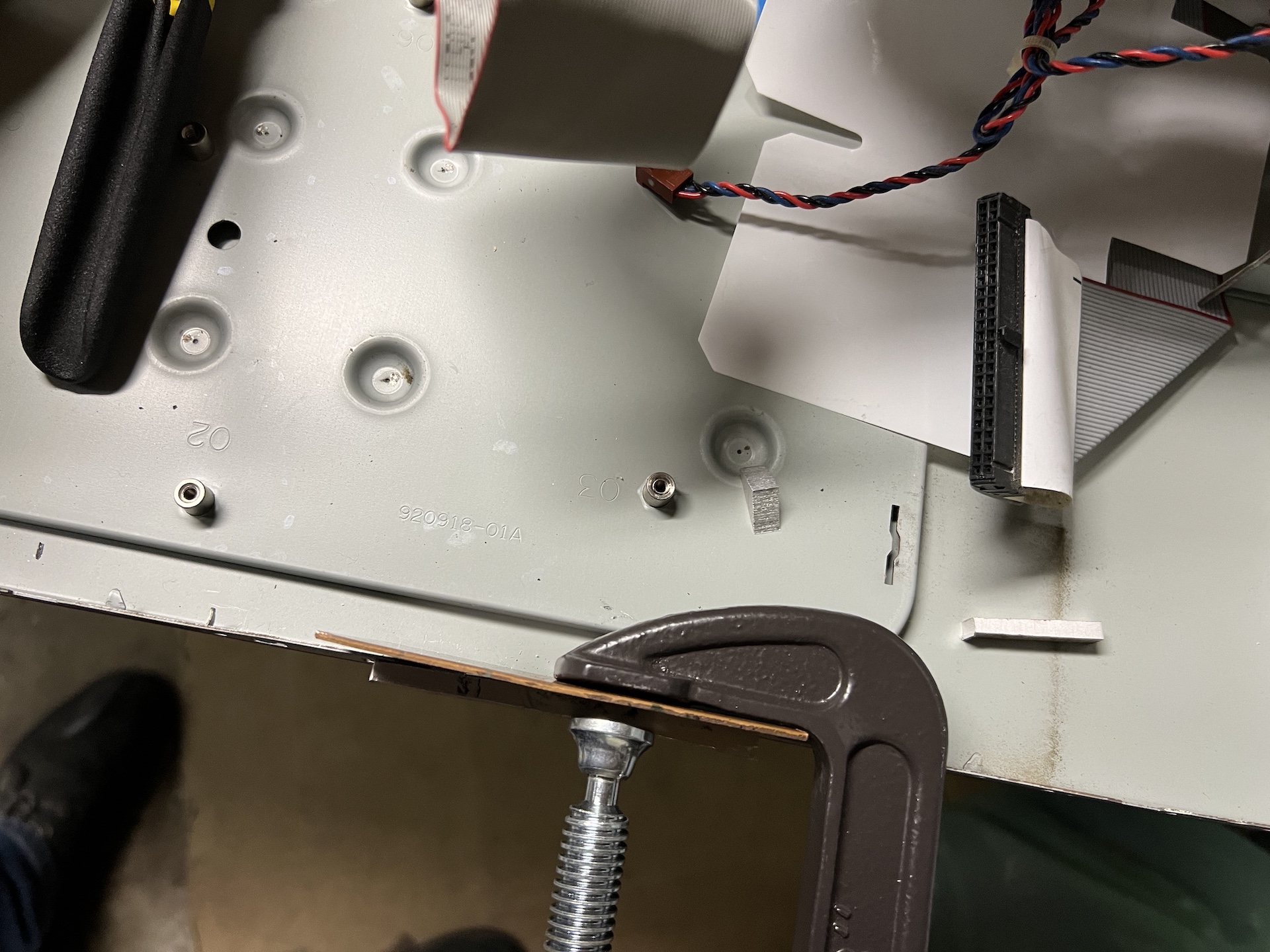

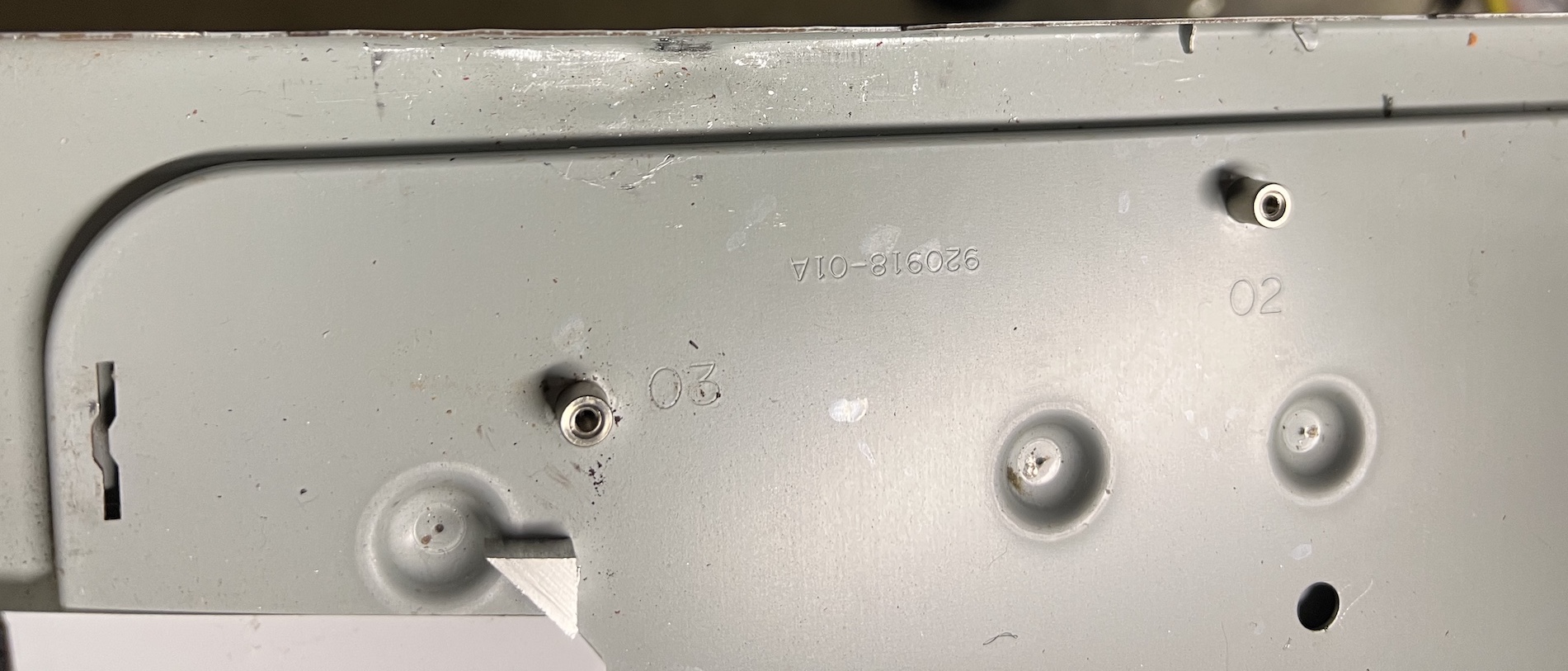

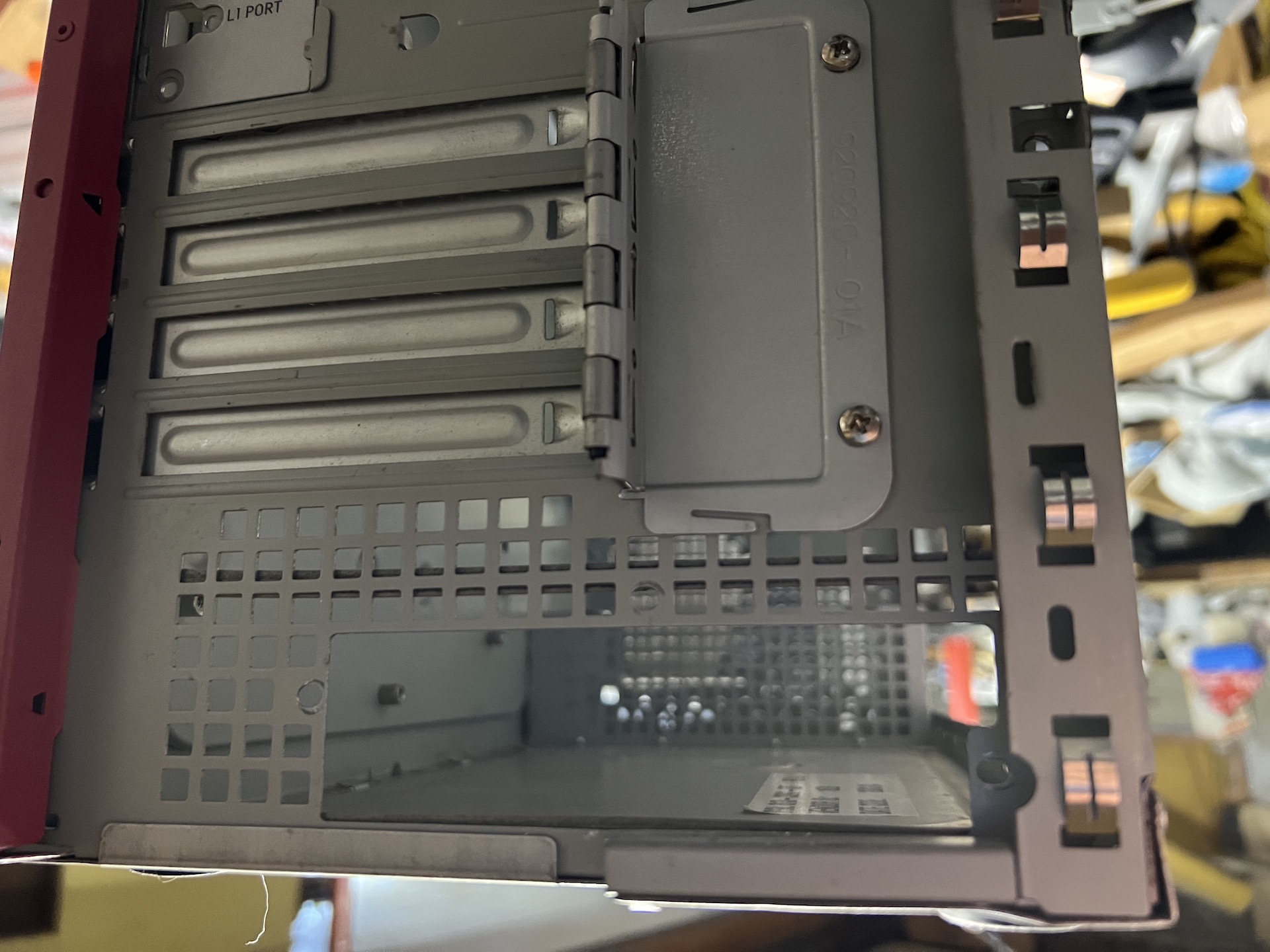

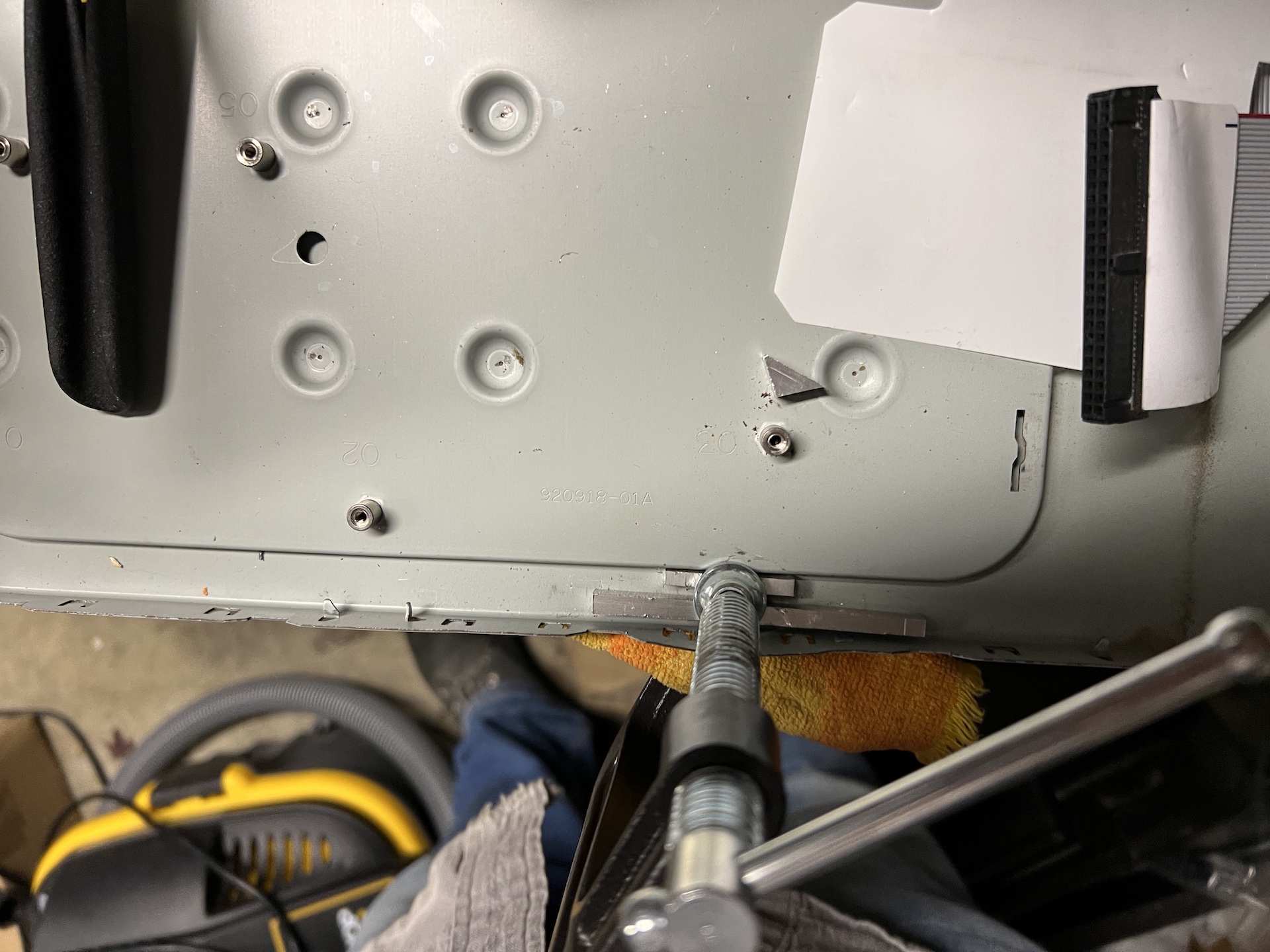

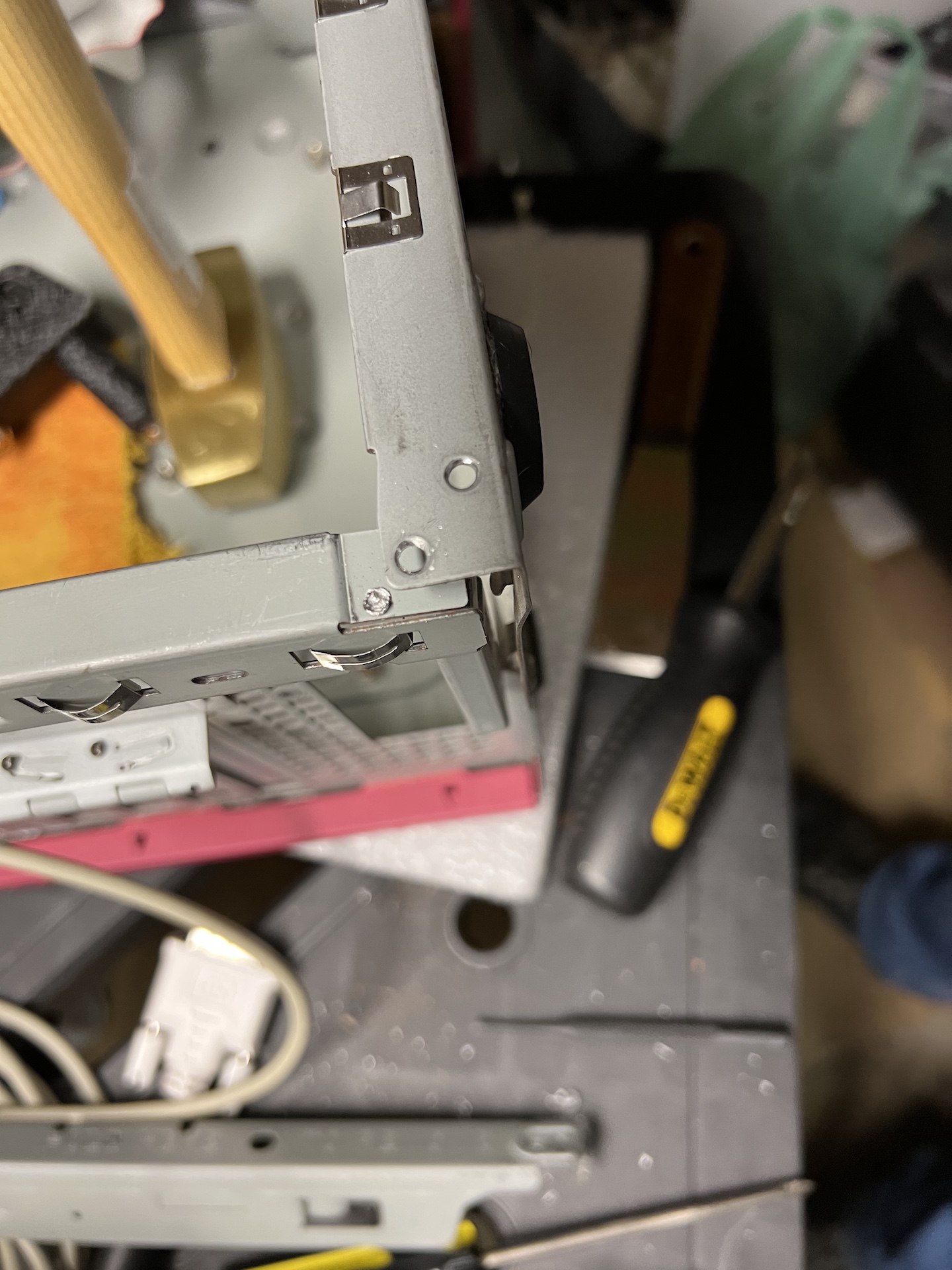

Now when I bent back the case metal it made it harder to insert my V10 card...cannot even easily get it out anymore...not sure why...so I'll likely wait until I'm doing my Tezro and re-test my original V10 card...I know sucks waiting...but whatever...I'm happy and maybe the card works...maybe not. I've not touched the original PSU as I plan to get to Fuel PSU after I finish with Tezro and get through Octane...so it's on the waiting list! Right now I'm using a Fuel ATX Adapter and 700W FSP PSU.
I may add to this thread, but I'll consider this completed as the system has no more issues, appears fully functional, boots all the way to graphics, what more did I expect?
So I'll summarize the issues for those that don't want to read the entire posting.

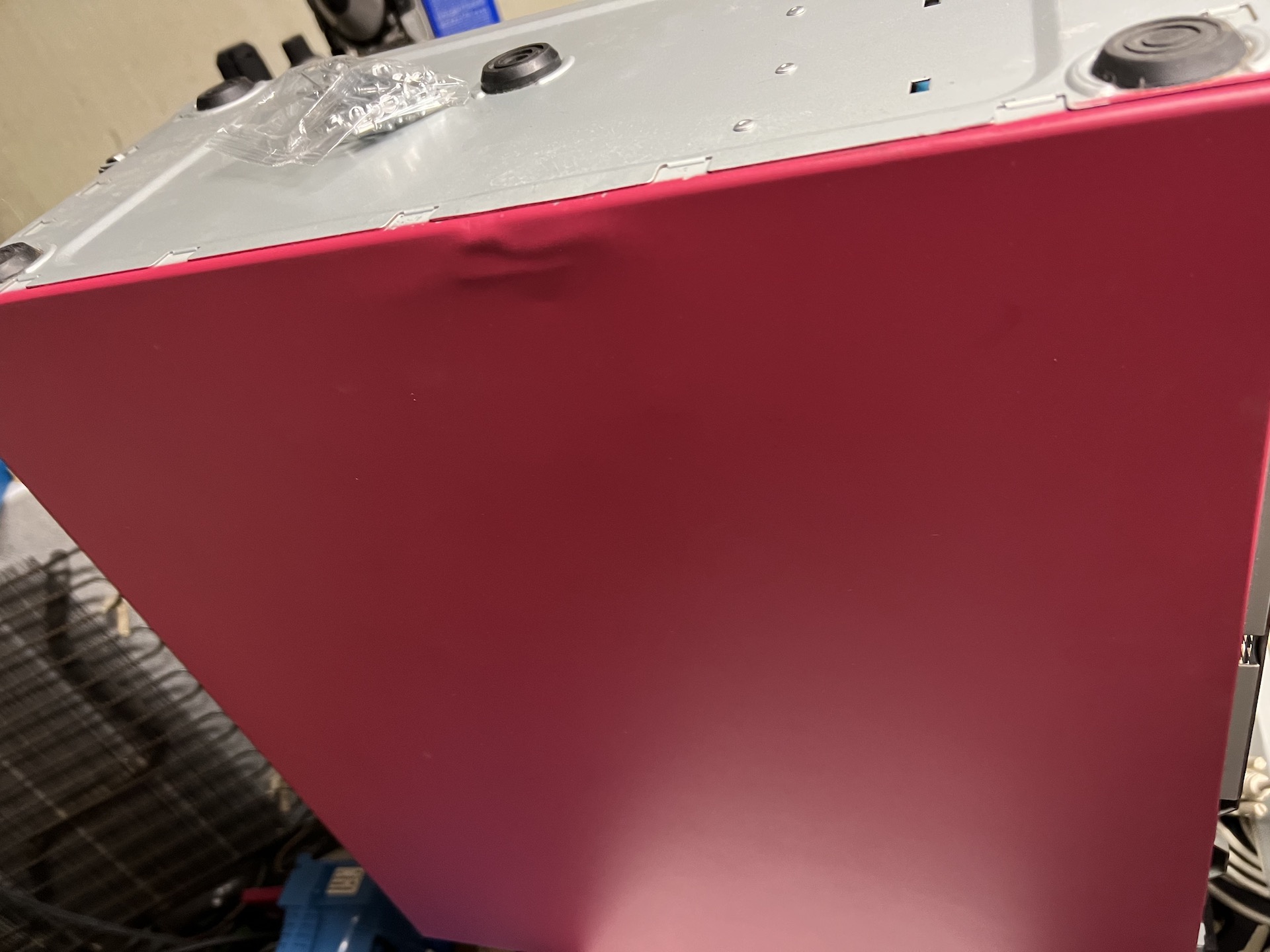

System arrived with heavy dents, advertised as DEAD by the seller.
System had a shorted graphics card with a shorted DS1780 IC (ENV monitoring) Attempted to fix the card by installing a NEW DS1780 IC and got ENV monitoring back online but there was an additional short on the 12V XIO Bias and I ending up buying a new V10 card...but I didn't know it wasn't booting for other reasons after ENV was fixed! So I put a used V10 in it...nothing changed...kept the new V10 from that point on.
I couldn't get to the main console (I thought the L1 was stopping me with a error message that said "pre-power check failed"). Turns out that some Fuels have Serial 1 output their console with the internal header outputing L1. Once I found that out I plugged into both serial ports and got the output. I found that I was dumping to POD due to "invalid NVRAM DATA", I'd never gotten this output before so had I seen this I might have held off buying the graphics card, but oh well.
This error clearly means my SNAPHAT battery was dead, I order the bigger snaphat and plugged it in, re-inited. Now the system would actually get farther and also the console and the L1 were now on the same internal header port!
But then I saw a register error and a memory initialization error.
The original owner had obviously seen this issue because they used a DIMM layout that couldn't have been legal...but worked due to the fact that DIMM3 memory sizing wasn't working. The original DIMMs were 256MB, 256MB, 512MB, 256MB.

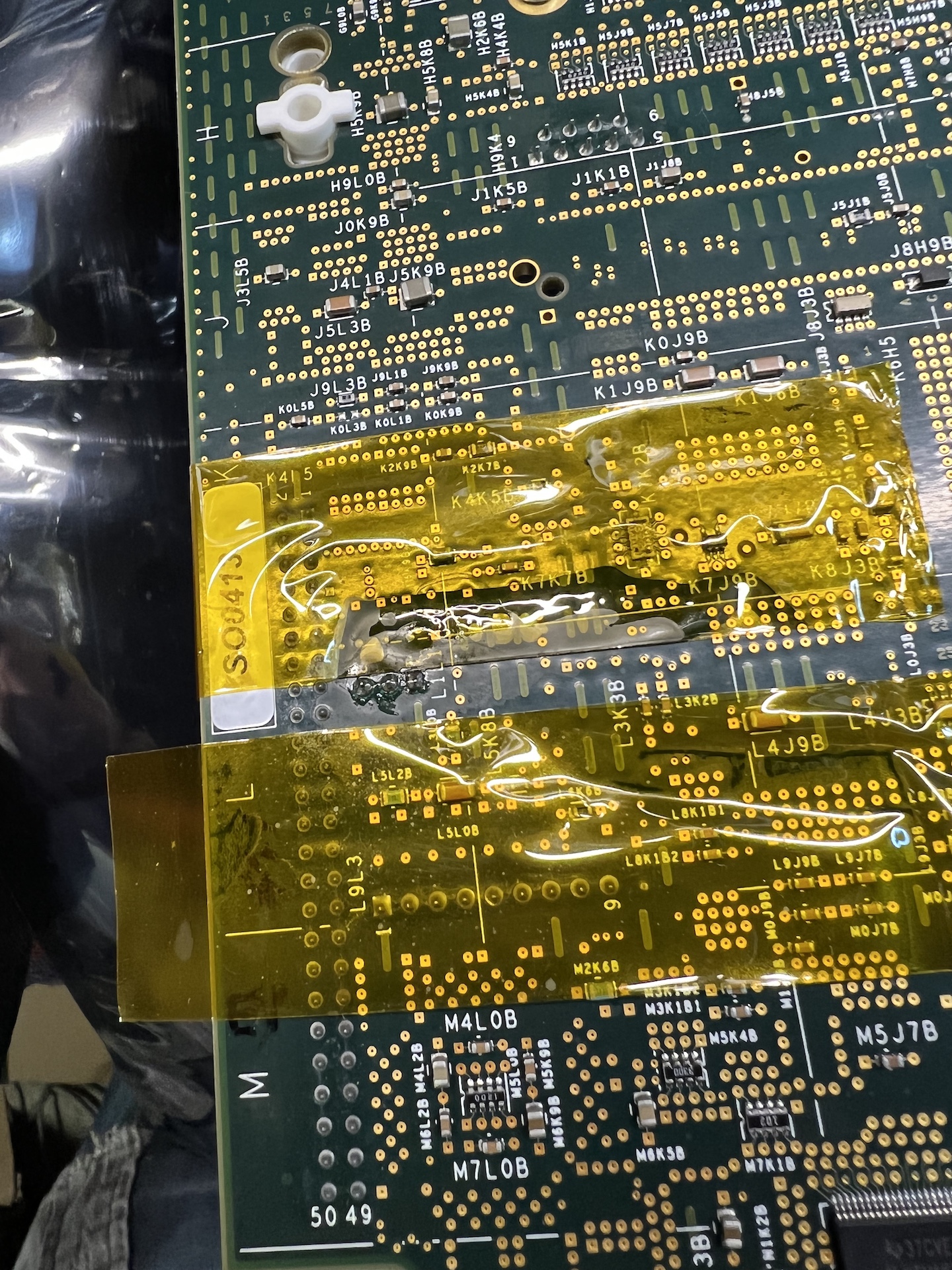

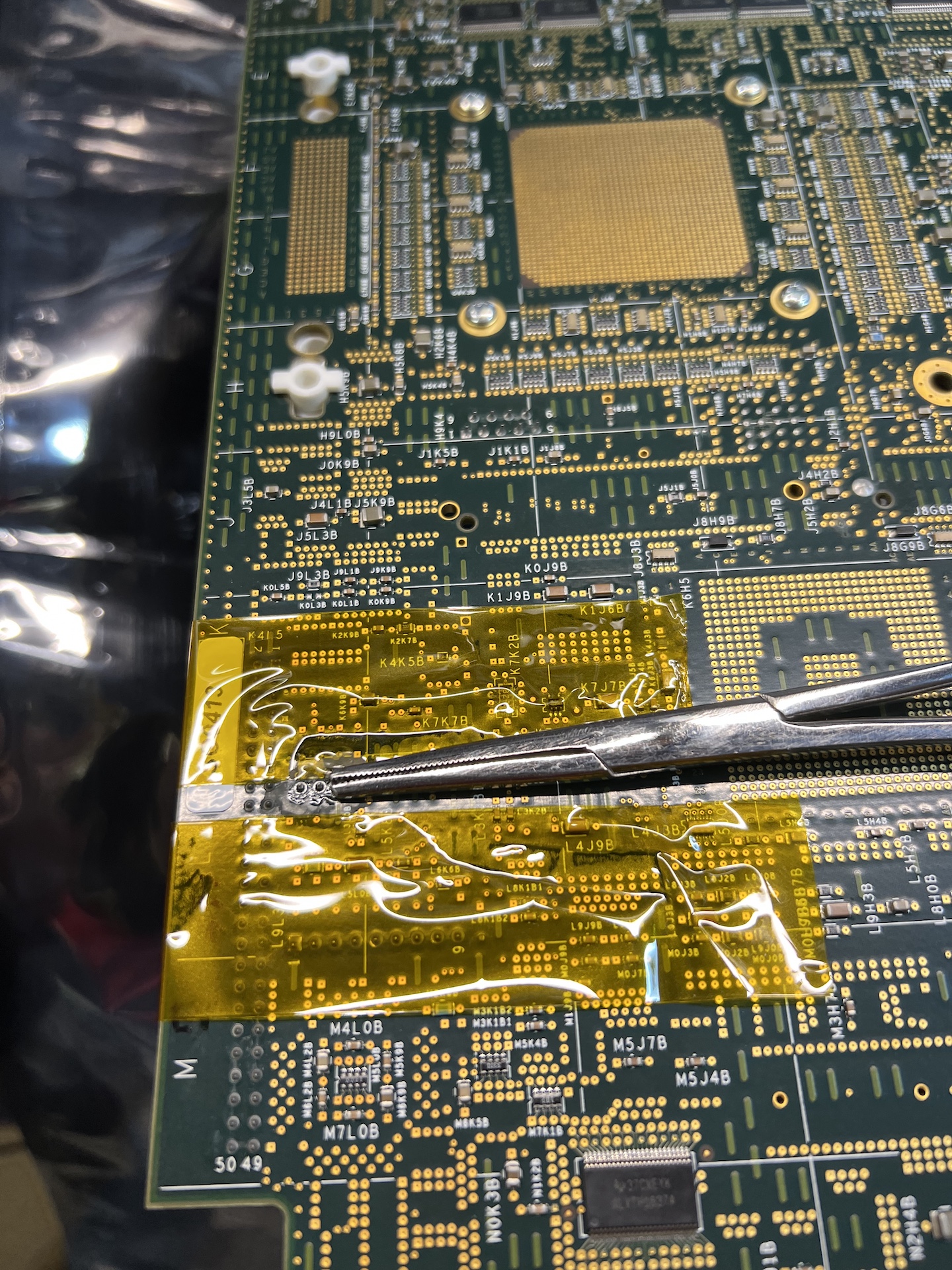

This worked because the PROM assumed DIMM3 was 256MB and made an error about it...didn't matter what module, of any size, you inserted. So I removed the mainboard and cleaned the legs of all the ICs under it, and inserted 4 x 512MB of DIMMs I already owned from my Tezro (prior to memory upgrade years ago). When it booted it instantly complained about DIMM1 being gone and stopped. This wasn't good, so I reinstalled the same DIMMs again and this time got BACK everything but DIMM3 being fully recognized. I then decided to reinstall and wiggle and push the DIMMs to cause the contacts some scratching movement (I do this on PCs as well to confirm seating). After that...ALL MEMORY TESTS PASSED! All 2GB seen...I won't be upgrading to more (why bother?) so I'm happy.

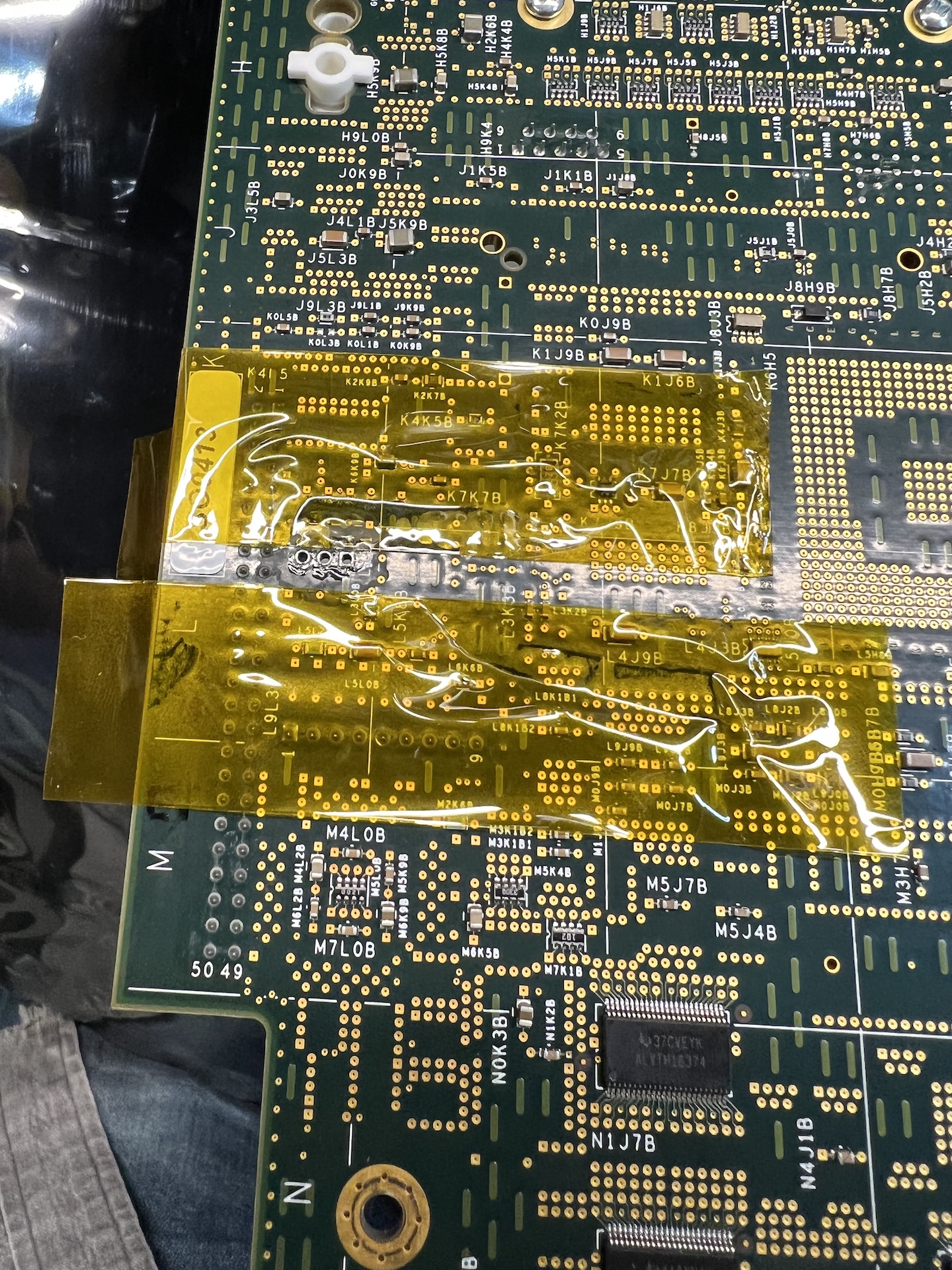

The HDD bay fan header on the mainboard was loose and not locking when I got it, the lock tab soon fell off. I ordered a common molex KK series 3 post 2.54mm locking header and desoldered the old one and soldered the new one in.
I've now reassembled everything and booted. I also upgraded the L1 firmware to version 1.48 (last patched version).
So that along with those items, the HDD wasn't jumpered for ID correctly (conflicted with mainboard ID) and the optical drive was not placed correctly the last connector on the ribbon (causing some SCSI noise).
Original SCSI SGI HDD worked fine, loaded irix 6.5.30 via optical drive (I have official media for that version).
So those were the many problems. She's running well now and I'm going to try to shine her up and put her up with the other systems and move on!
Thanks to everyone who participated and gave their thoughts. I'll start more threads as I go with repairs.
Remember to have fun!
