Looking for help with a Professional IRIS
#20
RE: Looking for help with a Professional IRIS
(05-14-2021, 02:00 PM)Geoman Wrote:  What an interesting read and a fine work done!

As for the "Dallas-sandwich-chips", 2 days ago I have done the deed and excavated the expoxy whith both coin cells in it with a dremel and had the bare PCB. The quarz oscillator got damaged in the process, so I soldered a new one in. Then I attached 2 cables with a coin cell holder. In the end the thing looks very clean, much cleaner than in the image. I dared to do this, because I had 2 times success with my Indigo2s (see picture).

So If my Crimson works fine with this hack, I can offer to repeat the process on your Dallas chip, now that I know whats inside the layer of epoxy.

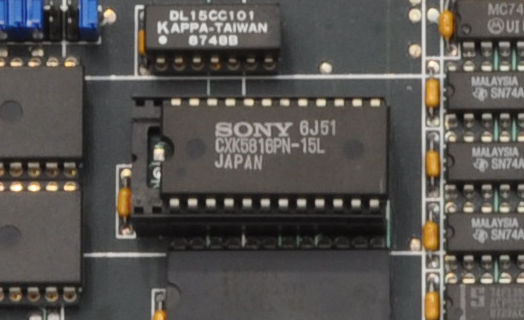

The NVRAM has two parts: the RTC with embedded batteries and an SRAM on top of it (with the SONY logo).

Where does the SRAM go now?


Attached Files Image(s)



[Image: collection.png]
Keeping TechPubs alive!

 jan-jaap
SGI Collector

Trade Count: (0)
Posts: 1,051
Threads: 37
Joined: Jun 2018
Location: Netherlands
Website Find Reply
05-14-2021, 02:32 PM
